# Use Redis for password authentication

EMQX supports integrating with Redis for password authentication.

# Data schema and query statement

Redis authentication works with credentials stored as Redis hashes (opens new window) with predefined field names:

  • password_hash: required; password (in plain text or hashed) stored in the database;
  • salt: optional; salt = "" or just remove this field to indicate no salt value will be added;
  • is_superuser: optional; flag if the current client is a superuser; default: false.

For example, if we want to add a document for a superuser (is_superuser: true) with username user123, password secret, prefixed salt salt, and password hash sha256, the query statement should be:

>redis-cli
127.0.0.1:6379> HSET mqtt:user123 is_superuser 1 salt salt password_hash ac63a624e7074776d677dd61a003b8c803eb11db004d0ec6ae032a5d7c9c5caf
(integer) 3
1
2
3

The corresponding config params are:

password_hash_algorithm {
    name = sha256
    salt_position = prefix
}

cmd = "HMGET mqtt:${username} password_hash salt is_superuser"
1
2
3
4
5
6

TIP

The name password_hash conveys our preference for storing hashed passwords. But given that Redis doesn't have a MySQL-like as syntax, EMQX 5.0 has kept the password field (in EMQX 4.x) compatible.

So, we can also configure cmd as HMGET mqtt:${username} password salt is_superuser.

# Configure with Dashboard

You can use EMQX Dashboard to configure how to use Redis for password authentication.

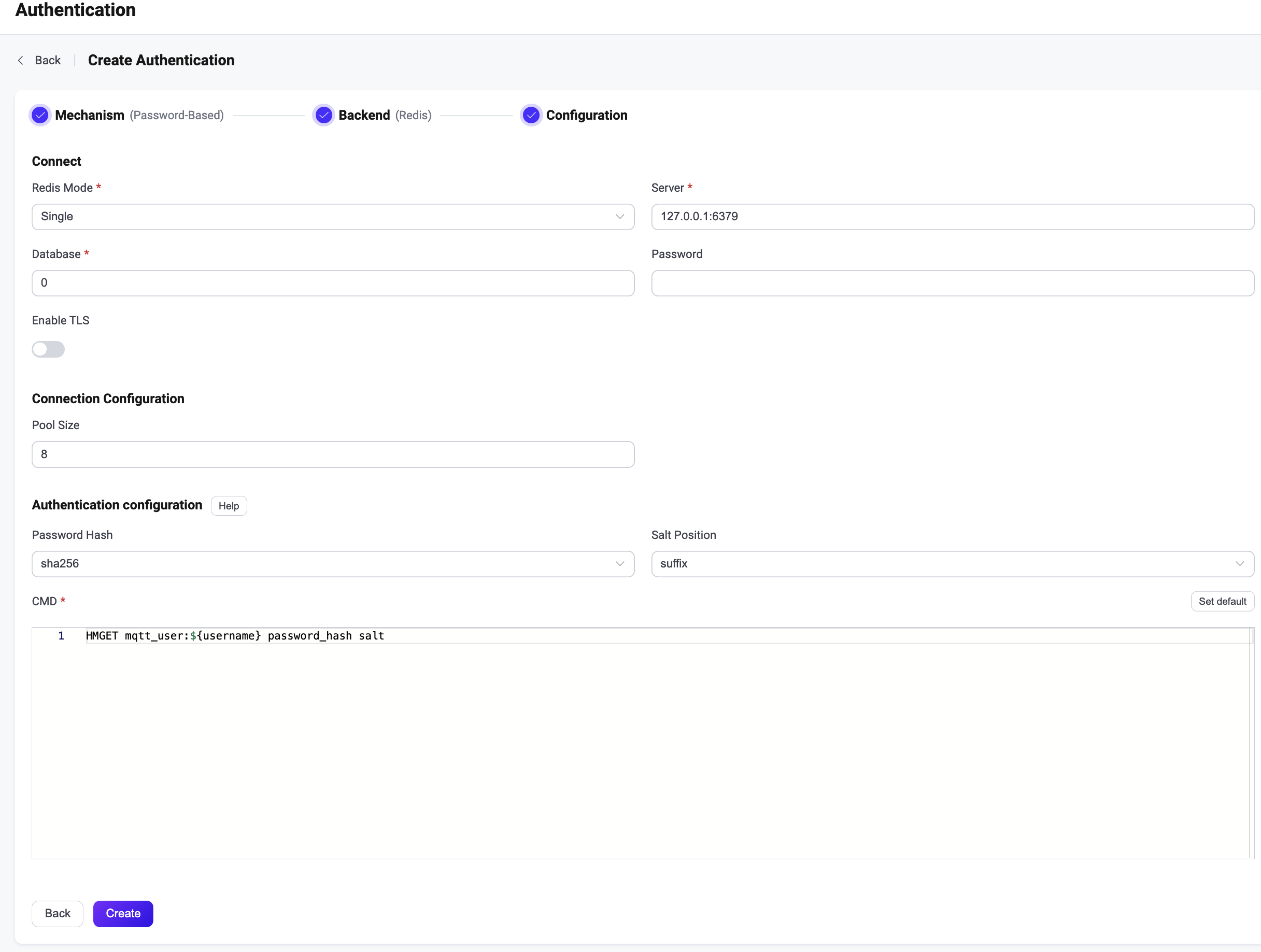

On EMQX Dashboard (opens new window), click Access Control -> Authentication on the left navigation tree to enter the Authentication page. Click Create at the top right corner, then click to select Password-Based as Mechanism, and Redis as Backend, this will lead us to the Configuration tab, as shown below.

Redis

Follow the instruction below on how to configure:

Connect: In this section, we will fill in the information needed to connect Redis.

  • Redis Mode: Select how Redis is deployed, including Single, Sentinel and Cluster.
  • Server(s): Specify the Redis server address that EMQX is to connect, if Redis Mode is set to Sentinel or Cluster, you will need to input all Redis servers (separated with a ,) that EMQX is to connect.
  • Sentinel Name: Specify the name to use; type: strings; only needed if you set Redis Mode to Sentinel.
  • Database: Redis database name; Data type: strings.
  • Password (optional): Specify Redis user password.

TLS Configuration: Turn on the toggle switch if you want to enable TLS.

Connection Configuration: In this section, we will set the concurrent connections and auto connections.

  • Pool size (optional): Input an integer value to define the number of concurrent connections from an EMQX node to a Redis server. Default: 8.
  • Reconnect: Specify whether EMQX automatically reconnects to Redis when the connection is broken; Options: True (automatic reconnection), False (no automatic reconnection); Default value: True.

Authentication configuration: In this section, we will fill in the authentication-related settings:

  • Password Hash Field: Specify the field name of the password.

  • Password Hash: Select the Hash function for storing the password in the database, for example, plain, md5, sha, bcrypt, pbkdf2.

    • If plain, md5, sha, sha256 or sha512 are selected, we also need to configure:

      • Salt Position: Specify the way (suffix, prefix, or disable) to add salt (random data) to the password. Note: If plain is selected, the Salt Position should be disable.
    • If bcrypt is selected, no extra configurations are needed.

    • If pkbdf2 is selected, we also need to configure:

      • Pseudorandom Function: Specify the Hush functions to generate the key, such as sha256.
      • Iteration Count: Specify the iteration times; Default: 4096
      • Derived Key Length (optional): Specify the length of the generated password, if left blank, the password length will be determined by the pseudorandom function you selected.
  • CMD: Redis query command.

Now we can click Create to finish the settings.

# Configure with configuration items

You can configure the EMQX Redis authenticator with EMQX configuration items. For detailed operation steps, see authn-redis:standalone, authn-redis:sentinel, and authn-redis:cluster.

Redis authentication is identified with mechanism = password_based and backend = redis.

EMQX supports working with three kinds of Redis installation.
